Reel handling GW Self-Reel-Feeder

Product feature

• easy operation
• small and handy
• purely mechanic
• reel width adjustable / reel balanced

• reel weight:
  standard: 1.000 kg, 2.000 kg
  Gmax: 4.000 kg

• Diameter: Dmax: 1500 mm
• Width: Bmax: 650 mm
  inside gripper:
  standard 70 mm, 76.2 mm, 150 mm, 152.4 mm
• available gripper for core size: 30 - 650 mm
• further sizes on request

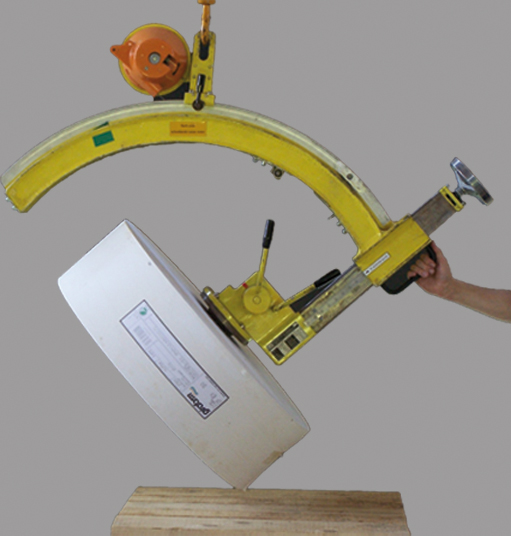

BW Bow-Reel-Turner

Product features

• simple operation
• electromechanic drive

• reel weight:
  Gstandard: 500 kg, 750 kg, 1.000 kg, 1.500 kg, 2.000 kg
  Gmax: 5.000 kg
• reel diameter: Dmax: 2.500 mm
• reel width: Bmax: 2.550 mm
• inside gripper:
  standard 70 mm, 76.2 mm, 150 mm, 152.4 mm
• available gripper for core size: 30 - 650 mm
• further sizes on request

RK Reel Tilter floor level

Product features

• simple operation
• no pit necessary
• load and unload with hand pallet card

Reel data

• weight, Gmax: 30.000 kg
  standard size: RK 10kN, RK 20kN


RHK Reel Lifter

Product features

• manual switch: gripping / releasing
• solid
• purely mechanical
• combined version RHK REEL LIFTER Combined available to pick up different core sizes with one unit

Reel data

• reel weight:
  standard: 1.000 kg, 2.000 kg
  Gmax: 4.000 kg
  inside-gripper:
  standard 70 mm, 76.2 mm, 150 mm, 152.4 mm
• available gripper for core: 30 - 650 mm
• further sizes on request


RHH Reel Lifter horizontal

Product feature

• manual swith: gripping / releasing
• solid
• purely mechanical

Reel data

• reel weight:
  standard: 1.000 kg, 2.000 kg
  Gmax: 4.000 kg
  inside gripper:
  standard 70 mm, 76.2 mm, 150 mm, 152.4 mm
• available gripper for core: 30 - 650 mm
• further sizes on request
